GMR DCOE Throttle Body Idle Vacuum Manifold

£95.00

£114.00 inc. VAT

MADE TO ORDER

Built in approx 7 working days

Delivered in around 10 working days — about Tue 20 Oct if ordered today

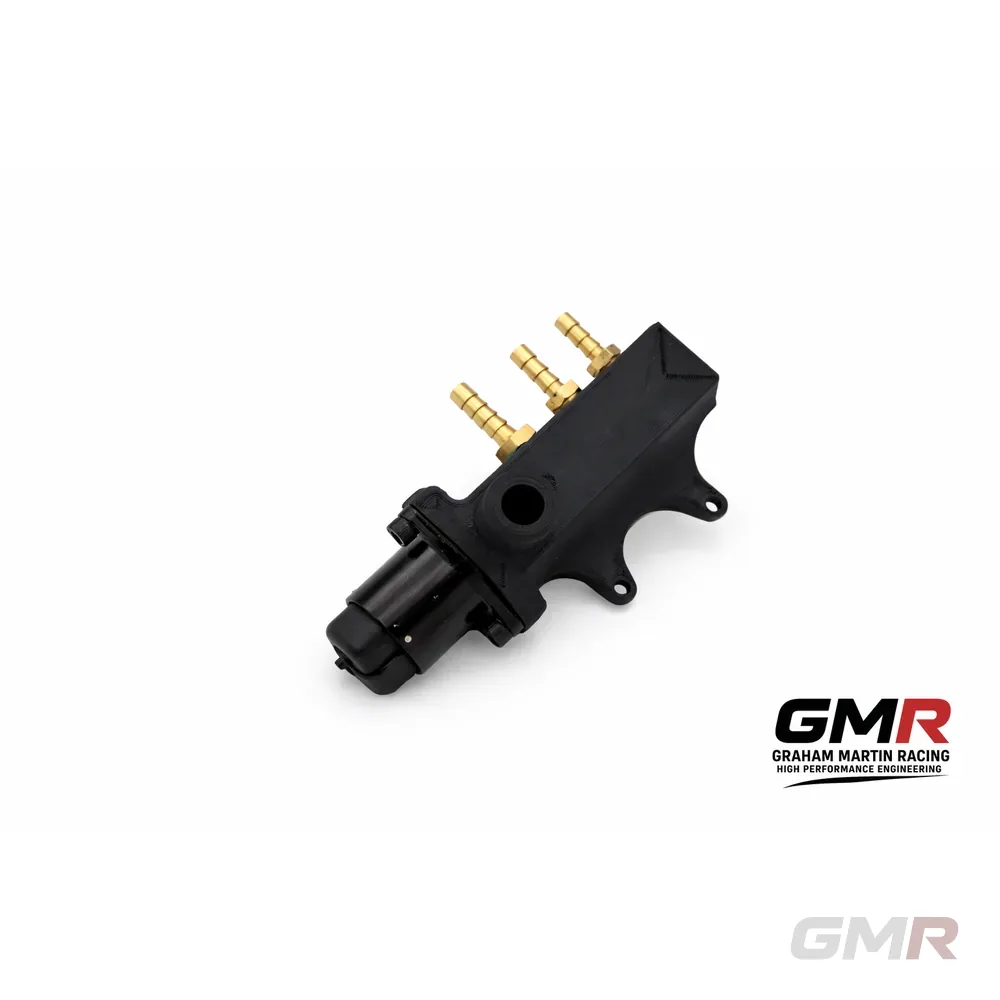

GMR designed and manufactured compact throttle body Idle vacuum manifold


Idle control built in:

Built into the end of the manifold is our standard idle valve control unit allowing the use 19mm filter or 19mm hose to an airbox.


Multiple inputs/outputs:

As standard there are 6×5mm hose barbs and 1x6.35mm hose barb. Normally for 4 cylinders, a fuel pressure regulator and a brake servo. Contact us upon order if you need additional fittings.

Want this, but not quite like this?

A different size, a bore spacing we don’t list, a port shape to suit your head, a fitting somewhere else — we make these ourselves, so most of it is a drawing change rather than a new product. Tell us what you need and we’ll price it.

Downloads

What’s included

In the price

  • One DCOE idle vacuum manifold with the idle valve control unit built into the end, taking a 19mm filter or a 19mm hose to an airbox
  • 4 × 5mm barbed adapters, one per cylinder
  • 6 × 5mm hose barbs and 1 × 6.35mm hose barb

Not included

  • Idle valve, MAP sensor, hose and the 19mm filter
  • The plug that wires the valve — our IAC connector kit is supplied separately

GMR designed and manufactured compact throttle body Idle vacuum manifold

  1. Idle control built in: Built into the end of the manifold is our standard idle valve control unit allowing the use 19mm filter or 19mm hose to an airbox.
  2. Multiple inputs/outputs: As standard there are 4×5mm barbed adapters to allow each cylinder to be plumbed into the vacuum manifold, (essential for idle air distribution), and an additional 2×5mm barbed outputs for fuel pressure regulation and a spare. Additional to this we’ve added a 6.35mm barb for brake booster/engine vacuum pump integration.
  3. Easy install: DCOE underslung unit allows direct attachment an easy way to bolt on to a bracket in the engine bay.
  4. Adaptable: We’re able to customise this to suit your application, get in touch if you need something we don’t list!

Wiring the valve

The valve is wired through a four-way sealed connector. We supply that separately as the IAC connector kit — connector, terminals and seals — because most people fitting one of these manifolds already have a valve but not a loom for it. The pinout is in the datasheet above.
