Air boxes

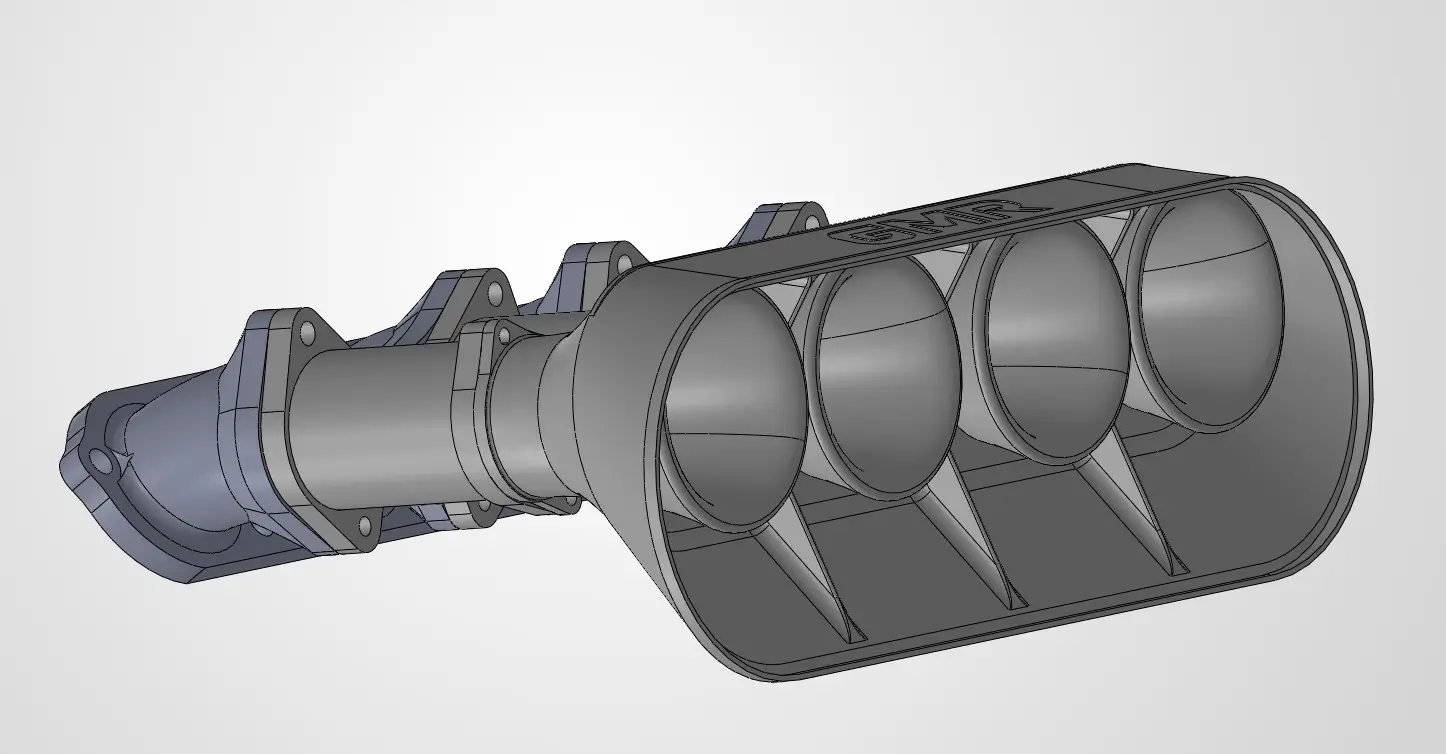

Peugeot 205 GMR Airbox for Jenvey & DCOE type throttle bodies
£200.00
£240.00 inc. VAT
MADE TO ORDER
Built in approx 10 working days
Delivered in around 13 working days — about Fri 30 Oct if ordered today
Advanced Carbon Composite airbox Manufactured using Carbon IDT, (Carbon Infused Digital Technology), high-strength carbon composite, this airbox is super lightweight and exceptionally insulative.
Made for Jenvey/DCOE throttle bodies with M6/M5 velocity stack mounting, due to the variance of depths of Jenvey bodies please check before ordering that we have the correct depth listed.
Want this, but not quite like this?
A different size, a bore spacing we don’t list, a port shape to
suit your head, a fitting somewhere else — we make these ourselves, so most of it is
a drawing change rather than a new product. Tell us what you need and we’ll price it.
What’s included
In the base price
One GMR airbox built for the Peugeot 205 engine bay, to suit DCOE-pattern bodies in your chosen size and length
Integrated full-radius velocity stacks — no separate stacks to buy or assemble
Double-skinned carbon composite shell
Not in the base price
Throttle bodies and intake manifold
An air temperature sensor — the boss for one is an option above
An idle valve — the 19mm idle output is an option above
Advanced Carbon Composite airbox
Manufactured using Carbon IDT, (Carbon Infused Digital Technology), high-strength carbon composite, this airbox is super lightweight and exceptionally insulative.
Airbox features

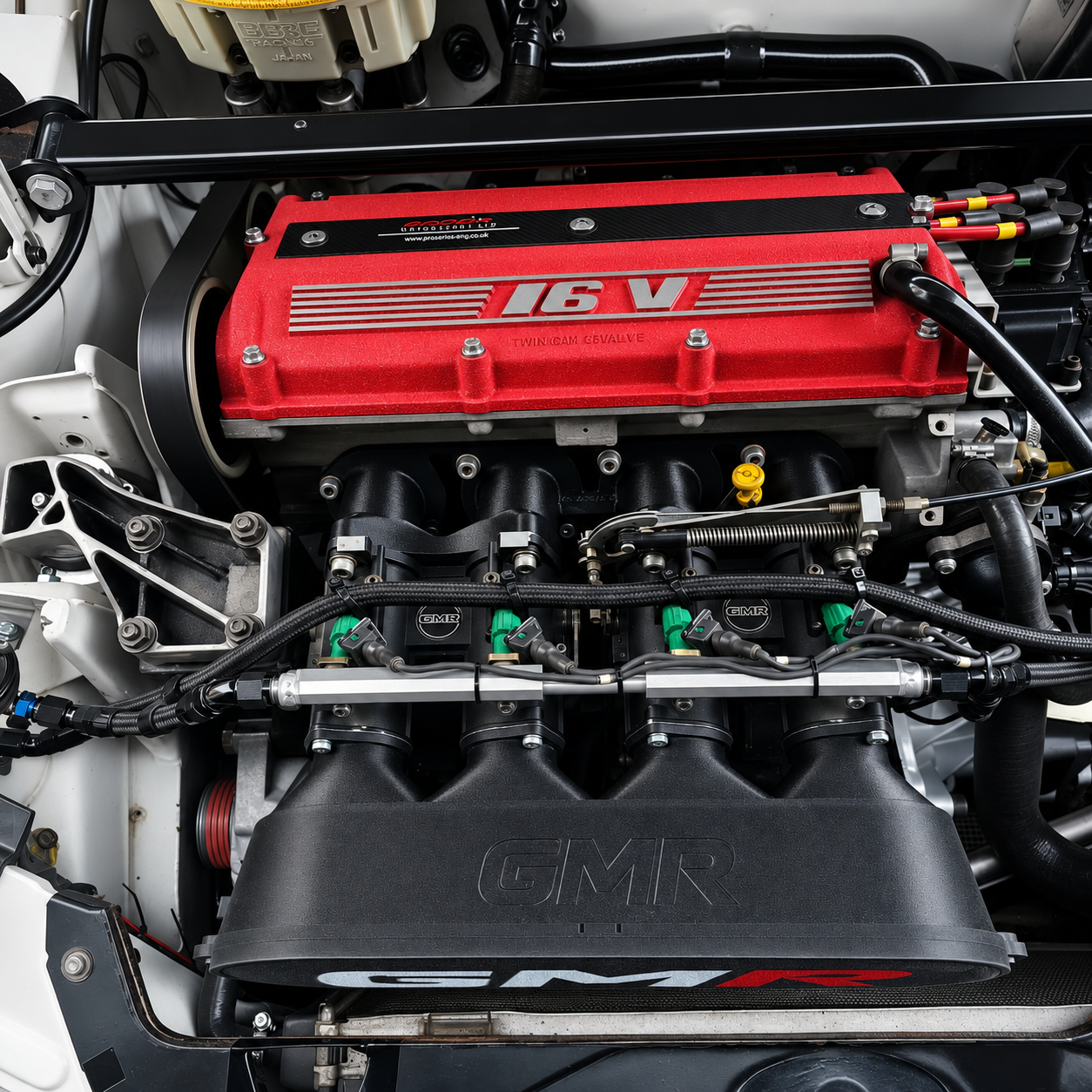

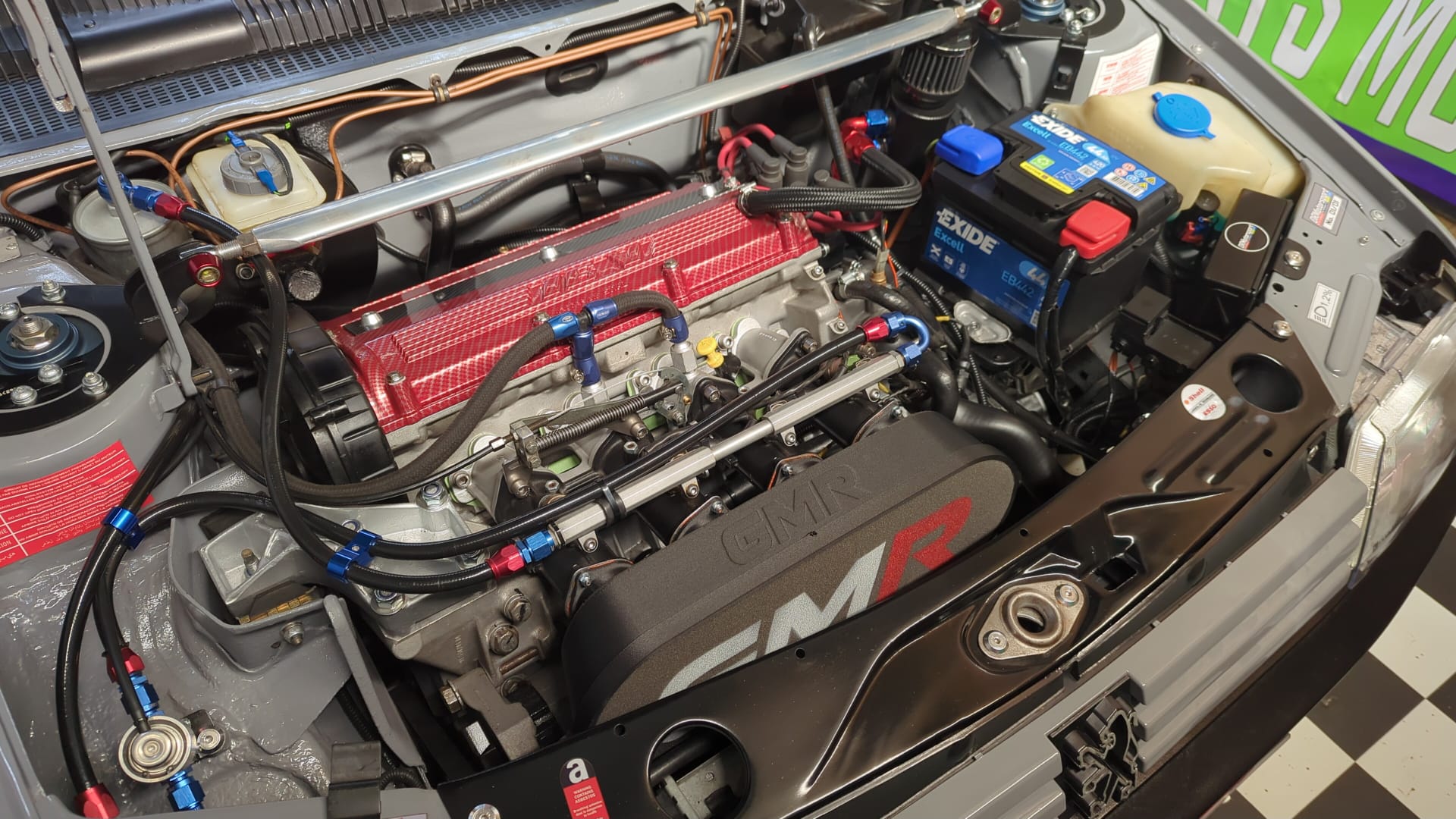

Built specifically for installation into the Peugeot 205 GTI, tested on Mi16 and GTi6 installations to clear the slam panel and radiator.
Integrated velocity stacks
No fiddly assembly required, bolt the whole airbox with integrated full radius velocity stacks onto your throttle bodies or carburettors.
Double skinned
The outer wall in all of our airboxes is double skinned which helps to insulate the inducted air from radiant heat.
No cutting or porting required
Port spacing, velocity stack entry size and accessory ports are all customisable. If you don’t see the option you need, get in touch!
Motorsport Grade filtration
All of our air boxes come with a replaceable high quality, twin layer, fully reticulated and polymer-impregnated foam designed for maximum dust filtration, high airflow, and long-term performance which also filters the idle/vacuum manifold.
Made to order.
A single, proven design
This box is drawn for one engine bay and made to that one design, so there is no design work to pay for — which is why it costs less than our universal boxes. If your car or your throttle bodies need something different, the universal box is the one to configure.
