K20 FWD Water Housing
£120.00
£144.00 inc. VAT
Built in approx 7 working days
Delivered in around 10 working days — about Tue 20 Oct if ordered today

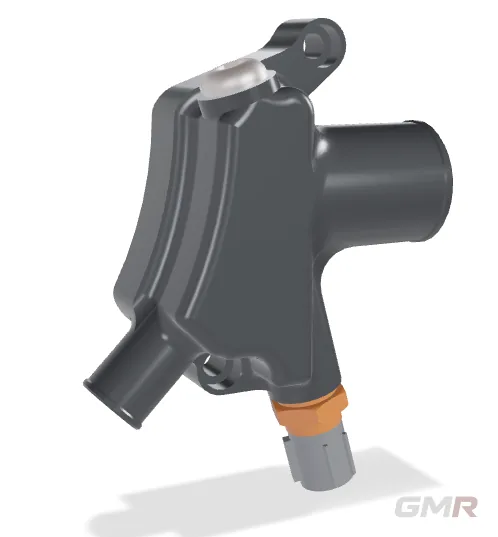

Honda K20 FWD Water Housing
A replacement for the factory K20 water housing, built for GMR ITB setups and custom setups where the OEM part limits your options.
The top radiator hose connects to a 32mm barb outlet. An ORB06 port on top makes bleeding the cooling system straightforward, or it can feed an air bleed line to a header tank. An M12x1.5 port at the bottom takes a water temperature sender directly.
Features
- 32mm barb for the top radiator hose
- M12x1.5 water temperature sender port on the underside
- ORB06 air bleed port, supplied with a blanking plug
- Fits K20A, K20A2, K20A3, K20Z1 and K24A1 engines
Want this, but not quite like this?
A different size, a bore spacing we don’t list, a port shape to suit your head, a fitting somewhere else — we make these ourselves, so most of it is a drawing change rather than a new product. Tell us what you need and we’ll price it.
What’s included
In the price
- One K20 FWD water housing
Not included
- Sensors, unions, hoses and fixings
