Injectors

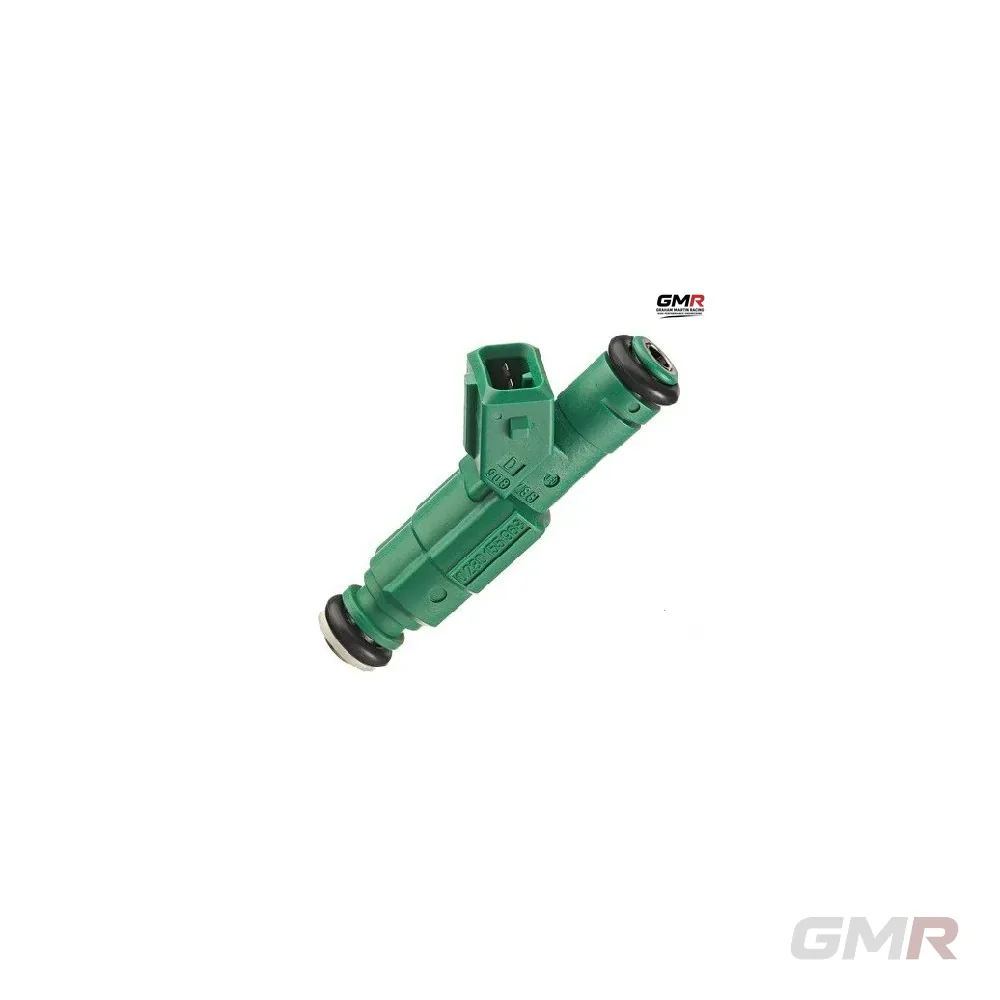

465cc “Green Giant” Injectors

from £45.00

from £54.00 inc. VAT

Sold individually. A four-cylinder engine takes four.

Flow rate
465cc/min at 3 bar
Type
EV14L / long body
Spray pattern
4-hole disc
Impedance
14.2 Ω (high impedance)
Connector
2-way JPT
Length
60 mm O-ring centres · 74 mm overall
Interchange
0280155968

How many?

£45.00 each, ex VAT

We flow-test every injector in the set across the pulse-width range, supply them matched to each other and include the figures. 2 or more.

—

What’s included

Sold individually. A four-cylinder engine takes four.

In the price

  • One 465cc “Green Giant” injector

If you choose flow matched

  • Your set measured across the pulse-width range on our bench
  • The measured figures supplied with them

Not included

  • Fuel rail, O-rings and clips

465cc “Green Giant” injectors sold individually

Flow rate: 465cc at 3 bar (nominal)
Type: EV14L / Long
Spray pattern: 4-hole disc
Ohm value: 14.2 Ohm (high-impedance)
Plug connector: 2-Way JPT
Length centre O-ring to centre O-ring: 60 mm
Total length overall: 74 mm
Interchange: 0280155968

Flow matched sets

Injectors leave a production line inside a tolerance, not identical. On four cylinders that shows up as one running richer than its neighbours at the same pulse width, which you then map around.

Choose flow matched and we put your set on our own bench, measure them across the pulse-width range, and pick a set that flows together — and you get the measured figures with them. It adds 10% per injector.
