Sold individually. A four-cylinder engine takes four.
Flow rate
550cc/min at 3 bar
Type
EV14S / short body
Spray pattern
6-jet fine spray
Impedance
12 Ω (high impedance)
Connector
2-way JPT
Interchange
0280158117
What’s included
Sold individually. A four-cylinder engine takes four.
In the price
One Bosch EV14S 550cc injector
If you choose flow matched
Your set measured across the pulse-width range on our bench
The measured figures supplied with them
Not included
Fuel rail, O-rings and clips

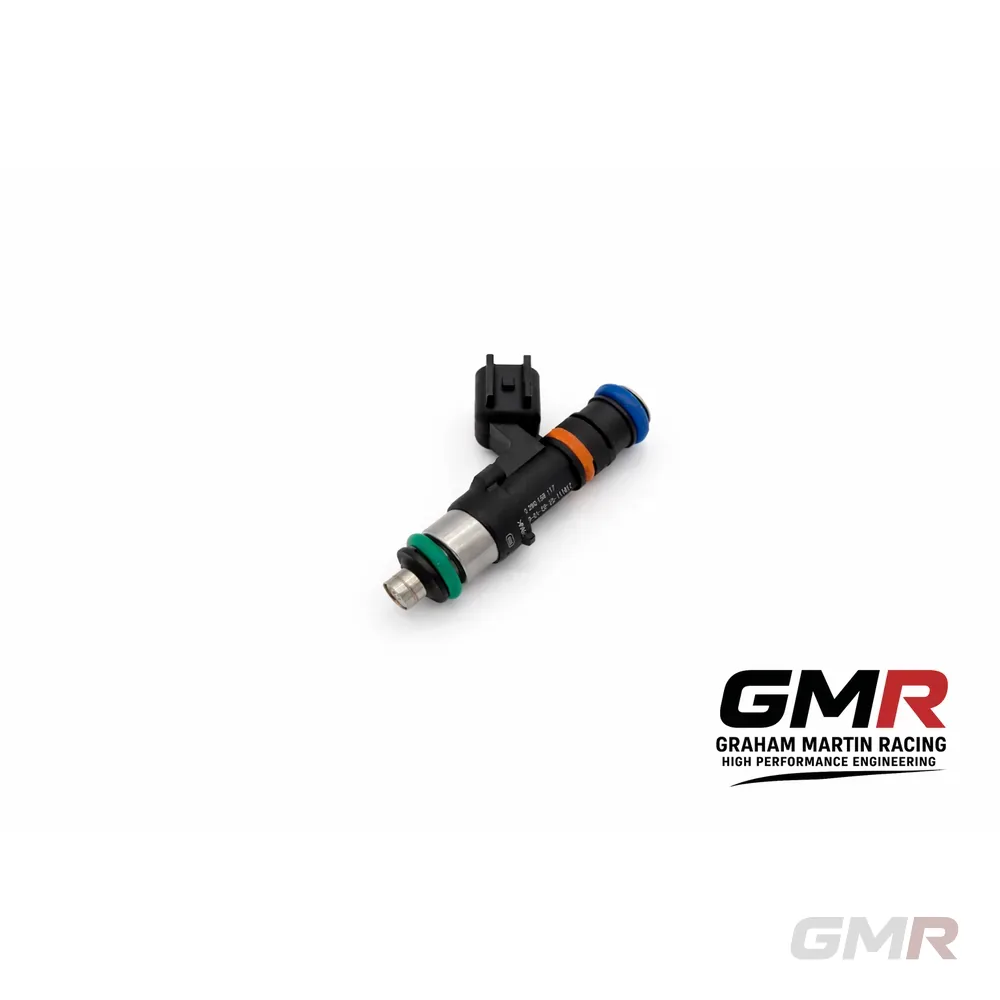

Bosch EV14S Injectors sold individually
Flow rate: 550cc at 3 bar Type: EV14S / thin / Standard Spray pattern: 6-jet fine Ohm value: 12 – 15 Ohm (high-impedance) Manufacturer: BOSCH Plug connector: Delphi Length center O-ring to center O-ring: 52 mm Total length over all: 65 mm
Flow matched sets
Injectors leave a production line inside a tolerance, not identical. On four cylinders that shows up as one running richer than its neighbours at the same pulse width, which you then map around.
Choose flow matched and we put your set on our own bench, measure them across the pulse-width range, and pick a set that flows together — and you get the measured figures with them. It adds 10% per injector.
